Procedures & Stacks

• Stacks in memory and stack operations
• The stack used to keep trach of procedure calls
• Return addresses and return values
• Stack-based languages
• The Linux stack frame
• Passing arguments on the stack
• Allocating local variables on the stack
• Register-saving conventions
• Procedures and stacks on x64 architecture

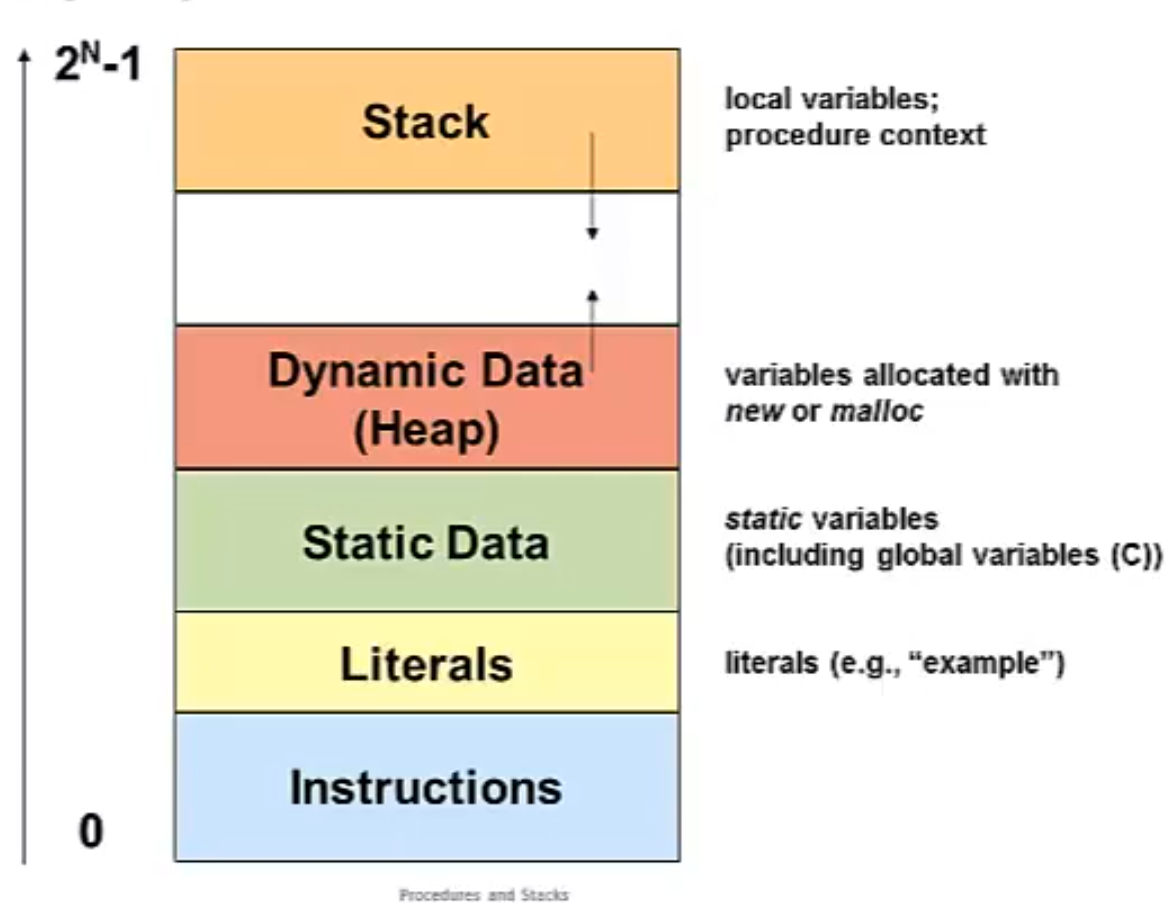

Memory Layout

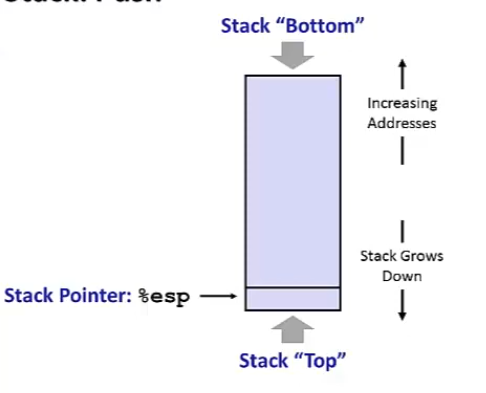

IA32 Call Stack

• Region of memory managed with a stack “discipline”
• Grows towards lower addresses
• Customarily shown “upside-down”
• Register %esp contains lowest stack address = address of “top” element

IA32 Call Stack: Push

• pushl Src
  • Fetch value from Src
  • Decrement %esp by 4 (why 4?) It’s a push long(4 bytes of 32 bit word)
  • Store value at address given by %esp

IA32 Call Stack: Pop

• popl Dest
  • Load value from address %esp
  • Write value to Dest
  • Increment %esp by 4

Procedure Call Overview

• Caller

...
<set up args>
call
<clean up args>
<find return val>
...

• Callee

<create local vars>
...
<set up return value>
<destroy local vars>
return

• Callee must know where to find args

• Callee must know where to find “return address”

• Caller must know where to find return val

• Caller and Callee run on same CPU -> use the sameregisters

  • Caller might need to save registers that Callee might use
  • Callee might need to save registers that Caller has used

• Caller

...
<save regs>
<set up args>
call
<clean up args>
<restore regs>
<find return val>
...

• Callee

<save regs>
<create local vars>
...
<set up return value>
<destroy local vars>
<restore regs>
return

• The convention of where to leave/find things is called the procedure call linkage
  • Details vary between systems
  • We will see the convention for IA32/Linux in detail

Procedure Control Flow

• Use stack to support procedure call and return
• Procedure call: call label
  • Push return address on stack
  • Jump to label
• Return address:
  • Address of instruction after call
  • Example from disassembly:

804854e: e8 3d 06 00 00 call  8048b90 <main>
8048553: 50             push1 %eax

• Return address = 0x8048553

• Procedure return: ret

  • Pop return address from stack
  • Jump to address

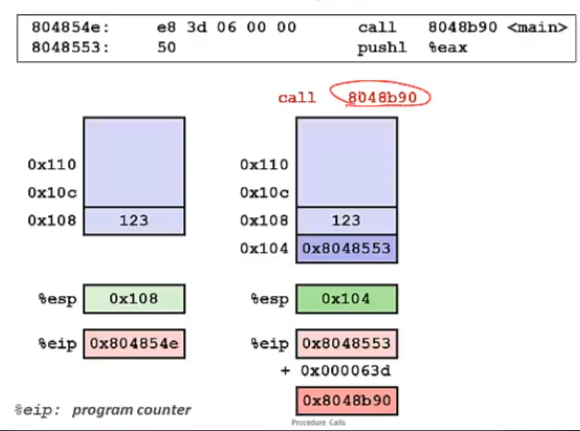

Procedure Call Example

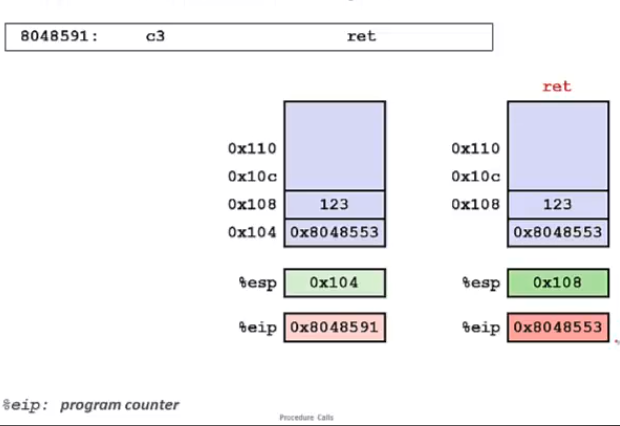

Procedure Return Example

Return Values

• By convention, values returned by procedures are placed in the %eax register
  • Choice of %eax is arbitrary, could have easily been a different register
• Caller must make sure to save that register before calling a callee that returns a value
  • Part of register-saving convention
• Callee placed return value (any type that can fit in 4 bytes - integer, float, pointer, etc.) into the %eax register
  • For return values greater than 4 bytes, best to return a pointer to them
• Upon return, caller finds the return value in the %eax register

Stack Based Languages

• Languages that support recursion
  • e.g, C, Pascal, Go
  • Code must be re-entrant
    • Multiple simultaneous instantiations of single procedure
  • Need some place to store state of each instantiation
    • Arguments
    • Local variables
    • Return pointer
• Stack discipline
  • Stack for a given procedure needed for a limited time
    • Start from when it is called to when it returns
  • Callee always returns before caller does
• Stack allocated in frames
  • State for a single procedure instantiation

Call Chain Example

yoo(...)
{
    ...
    who();
    ...
}

who(...)
{
    ...
    amI();
    ...
    amI();
    ...
}

amI(...)
{
    ...
    amI();
    ...
}

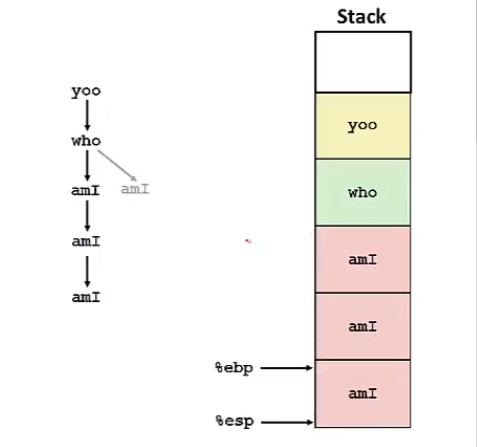

Example Call Chain

yoo
↓
who -> amI
↓
amI
↓
amI

• Procedure amI is recursive (calls itself)

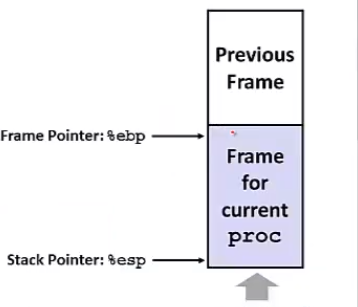

** Stack Frames **

• Stack frame = portion of stack used for a single procedure instantiation

• Contents

  • Local variables
  • Function arguments
  • Return information
  • Temporary space

• Management

  • Space allocated when procedure is created
    • “set-up” code
  • Space deallocated upon return
    • “Finish” code

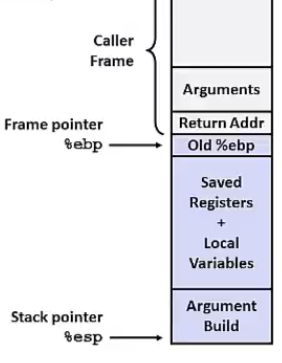

The Linux Stack Frame

• Current Stack Frame (“Top” to Bottom)

  • “Argument build” area (parameters for function about to be called)
  • Local variables (if can’t be kept in registers)
  • Saved register context (when reusing registers)
  • Old frame pointer (for caller)

• Caller’s Stack Frame

  • Return address
    • Pushed by call instruction
    • Arguments for this call

Revisting swap

int zip1 = 15213;
int zip2 = 98195;

void call_swap()
{
    swap(&zip1, &zip2);
}

void swap(int *xp, int *yp)
{
    int t0 = *xp;
    int t1 = *yp;
    *xp = t1;
    *yp = t0;
}

Calling swap from call_swap

call_swap:
    ...
    push1 $zip2  # Global var
    push1 $zip2  # Global var
    call swap
    ...

swap:
    # Setup
    push1 %ebp
    movl %esp, %ebp
    pushl %ebx

    # Body
    movl 12(%ebp), %ecx
    movl 8(%ebp), %edx
    movl (%ecx), %eax
    movl (%edx), %ebx
    movl %eax, (%edx)
    movl %ebx, (%ecx)

    # Finish
    movl -4(%ebp), %ebx
    movl %ebp, %esp
    popl %ebp
    ret

Allocating local variables on the stack

Register Saving Conventions

• When procedure yoo calles who:
  • yoo is the caller
  • who is the callee
• Can a register be used for temporary storage?

yoo:
    ...
    movl $12345, %edx
    call who
    addl%edx, %eax
    ...
    ret

who:
    ...
    movl 8(%ebp), %edx
    addl $98195, %edx
    ...
    ret

• Contents of register %edx overwritten by who
• Conventions
  • “Caller Save”
    • Caller saves temporary values in its frame before calling
  • “Callee Save”
    • Callee saves temporary values in its frame before using

IA32/Linux Register Usage

# Caller-save Temporaries
%eax
%edx
%ecx

# Callee-save Temporaries
%ebx
%esi
%edi

# Special
%esp
%ebp

%ebp (Extended Base Pointer)

• The “Anchor”: Also called the Frame Pointer, it stays at a fixed location for the duration of a function.
• Stack Frames: At the start of a function, the old %ebp is saved, and the current %esp is copied into %ebp to “lock” the base of the new frame.

%esp (Extended Stack Pointer)

• The “Mover”: Points to the very top (the current lowest memory address) of the stack.

• Dynamic: its value changes automatically whenever you use push, pop, call, or ret instructions

• Tracking: It keeps track of the next available space or the last item placed on the stack

• Volatility: Because it shifts constantly during calcaltions or nested calls, it is difficult to use for finding specific variables

• %eax, %edx, $ecx

  • Caller saves prior to call if values are used later

• %eax

  • also used to return integer value

• %ebx, %esi, %edi

  • Callee saves if wants to used them

• %esp, %ebp

  • special form of calle save- restored to original values upon exit from procedure

Example: Pointer to Local Variables

• Recursive Procedure

void s_helper (int x, int *accum)
{
    if (x <= 1)
        return;
    else {
        int z = *accum * x;
        *accum = z;
        s_helper (x-1, accum);
    }
}

• Top-Level Call

int sfact(int x)
{
    int val = 1;
    s_helper(x, &val);
    return val;
}

• Pass pointer to update location

Creating & Initializing Pointer

int sfact(int x)
{
  int val = 1;
  s_helper(x, &val);
  return val;
}

• Variable val must be stored on stack

  • Because: Need to create pointer to it

• Computer pointer as -4(%ebp)

• Push on stack as second argument

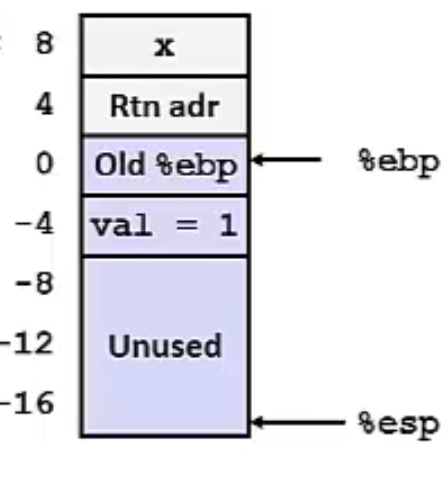

• Initial part of sfact

_sfact:
  pushl %ebp            # Save %ebp
  movl  %esp, %ebp      # Set %ebp
  subl  $16, %esp       # Add 16 bytes
  movl  8(%ebp), %edx   # edx = x
  movl  $1, -4(%ebp)    # val = 1

• Calling s_helper from sfact

leal  -4(%ebp), %eax  # Compute &val
pushl %eax            # Push on stack
pushl %edx            # Push x
call s_helper         # call
movl -4(%ebp), %eax   # Return val
...                   # Finish

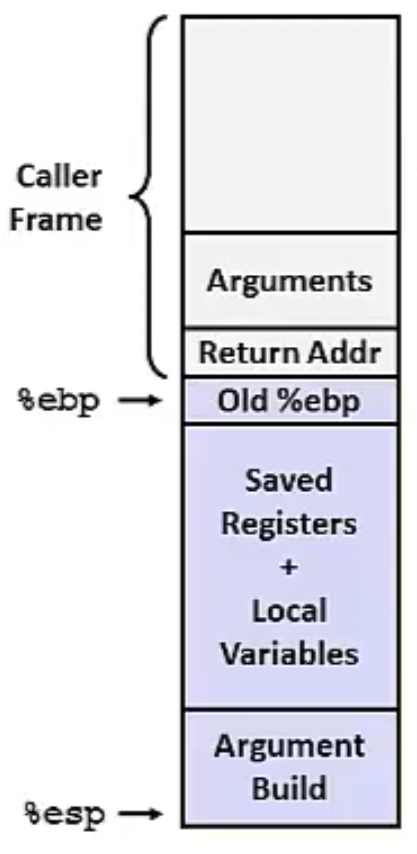

• Important points:
  • IA32 procedures are a combination of instructions and conventions
    • Conventions prevent functions from disrupting each other
  • Stach is the right data structure for procedure call / return
    • If P calls Q, the Q returns before P

• Recursion handled by normal calling conventions
  • Can safely store values in local stack frame and in callee-saved registers
  • Put function arguments at top of stack
  • Result returned in %eax

x86-64 Procedure Calling Convetion

• Doubling of registers makes us less dependent on stack
  • Store argument in registers
  • Store temporary variables in registers
• What do we do if we have too many arguments or too many temporary variables?

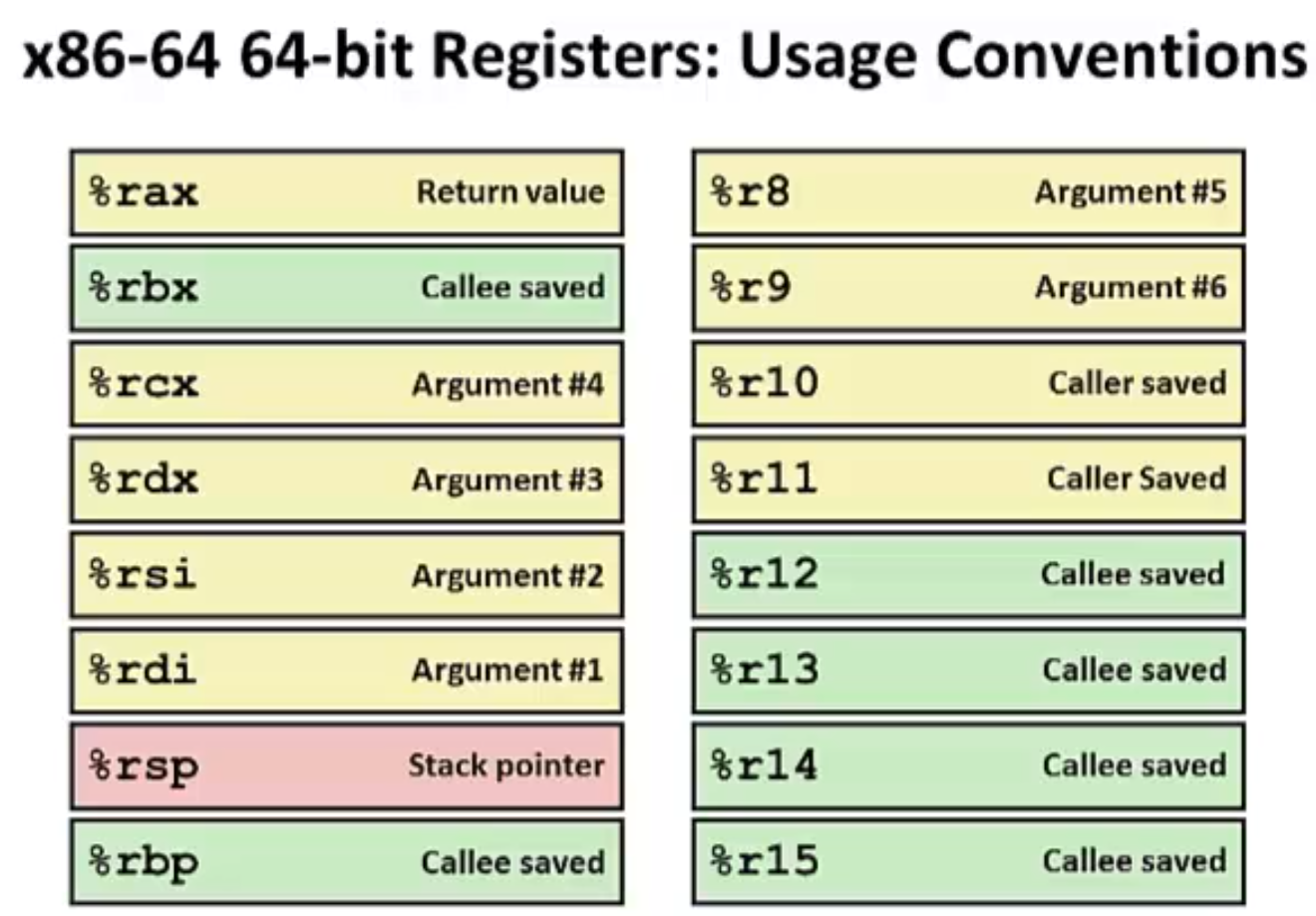

x86-64 64-bit Registers: Usage Conventions

swap:
  // Set Up
  pushl %ebp
  movl %esp, %ebp
  pushl %ebx

  // Body
  movl 12(%ebp), %ecx
  movl 8(%ebp), %edx
  movl (%ecx), %eax
  movl (%edx), %ebx
  movl %eax, (%edx)
  movl %ebx, (%ecx)

  // Finish
  movl -4(%ebp), %ebx
  movl %ebp, %esp
  popl %ebp
  ret

swap (64-bit long ints):
  movq (%rdi), %rdx
  movq (%rsi), %rax
  movq %rax, (%rdi)
  movq %rdx,(%rsi)
  ret

• Arguments passed in registers
  • First (xp) in %rdi, second (yp) in %rsi
  • 64-bit pointers
• No stack operations required (except ret)
• Avoiding stack
  • Call hold all local information in registers

X86-64 procedure call highlights

• Arguments (up to first 6) in registers
  • Faster to get these values from registers than from stack in memory
• Local variables also in registers (if there is room)
• callq instruction stores 64-bit return address on stack
  • Address pushed onto stack, decrementing %rsp by 8
• No frame pointer
  • All references to stack frame made relative to %rsp; eliminates need to update %ebp/%rbp, which is now avaible for general-purpose use
• Functions can access memory up to 128 bytes beyond %rps: the “red zone”
  • Can store some temps on stack without altering %rsp
• Registers still designated “caller-saved” or “calle-saved”

x86-64 Stack Frames

• Often (idelly), x86-64 functions need no stack frame at all
  • Just a return address is pushed onto the stack when a function call is made
• A function does need a stack frame when it:
  • Has too many local variables to hold in registers
  • Has local variables that are arrays or structs
  • Uses the address-of operator (&) to compute the address of a local variable
  • Calls another function that takes more than six arguments
  • Needs to save the state of callee-save registers before modifying them

x86-64 Procedure Summary

• Heavy use of registers (faster than using stack in memory)
  • Parameter passing
  • More temporaries since more registers
• Minimal use of stack
  • Sometimes none
  • when needed, allocate/deallocate entire frame at once
  • No more frame pointer: address relative to stack pointer
• More room for compiler optimizations
  • Prefer to store data in registers rather than memory
  • Minimize modifications to stack pointer
